Filters are how you can adjust the exposure, color, contrast, and style of your image in Aurora HDR 2019. The proper use of filters can significantly improve your image. Each filter is designed to solve specific problems or enhance an image in a particular way. Each major adjustment tool in Aurora HDR 2019 is contained within a “control group” generally consisting of a header with the name of the tool, along with a set of sliders or other controls related to this tool.
An Overview Of Filters
To help you get the most from Aurora HDR 2019’s filters, you’ll find a detailed guide below that explains the major features of each. You may notice that certain Filters have parts that perform similarly.
Common controls with every filter include the following:
- Clicking on the header, (the section name) hides and reveals this section.
- When hovering over a name, clicking the reset arrow restores all the sliders to their default state. To cancel this action, you can choose Edit > Undo.
- When hovering over a name, clicking on the visibility icon, (eyeball) enables or disables the tool, allowing you to view the image with or without the effect of this tool.

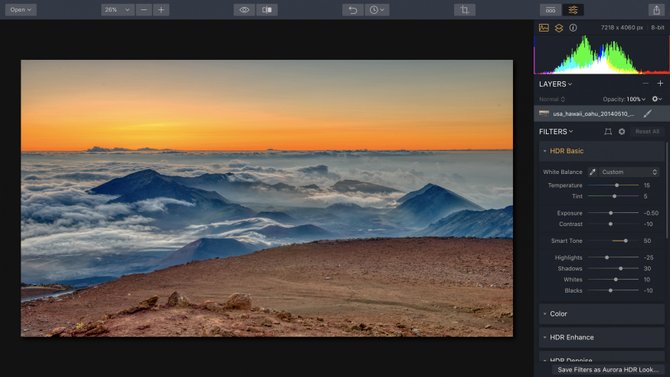

This tool gives you the control to adjust the Tone Mapping process. Tone mapping or “compression” converts a wide dynamic range image into one with a more narrow range that can be displayed on a computer monitor. It’s a great place to start your HDR journey.
- White Balance — Use the White Balance preset list to choose from a variety of looks that are similar to a camera’s white balance menu.
- Temperature — Use this slider to warm or cool a shot. This adjustment essentially adds Cyan or Yellow to an image to change its color temperature.
- Tint — This adjusts the amount of Green or Magenta that is added to a shot. It is useful for removing color casts from an image.
- Exposure — Adjusts the global luminance of the image. Moving this slider to the left results in a darker image (reduction of exposure value). Moving this slider to the right results in a brighter image (increase of exposure value).
- Contrast — Adjusts the contrast of the image. Contrast is the difference in luminance or color that makes one object in an image distinguishable from another. Practically speaking, contrast is determined by the difference in the color and brightness of an object in relation to other objects within the same field of view.
- Smart Tone — This slider adjusts the overall brightness of an image properly. When moved to the right, the image becomes more vivid, but it does not apply when the bright areas become as white, as the ordinary exposure. And when you move the slider to the left, the image becomes darker but there are no completely black areas. This is a very powerful and balanced image brightness tool.
- Highlights — Adjusts the brightness of the brightest areas of the image. Moving the slider to the right cause very bright areas to become brighter, while moving the slider to the left, makes them darker.
- Shadows — Adjusts the brightness level of the darkest areas of the image. Moving the slider to the right will cause such areas to become brighter and additional details to appear. When moved to the left, such areas become darker, and the number of shadowy areas in the image generally increases.
- Whites — Adjusts the white point of the histogram and white tones in the image. When moved to the right, the brightest tones will become brighter while the histogram stretches to the right. Moving the slider to the left will cause white tones in the image to become darker and the histogram to compress to the left.
- Blacks — Sets the black point of the histogram or black tones in the image. After moving the slider to the right, black tones become brighter and the histogram compresses to the right. Moving the slider to the left, blacks become darker and the histogram stretches to the left.
A recommended workflow is to start with a light touch using Exposure and Contrast, then Smart Tone. Then proceed to setting Shadows and Highlights and finally, fine tune the contrast of the image using the Whites and Blacks sliders.

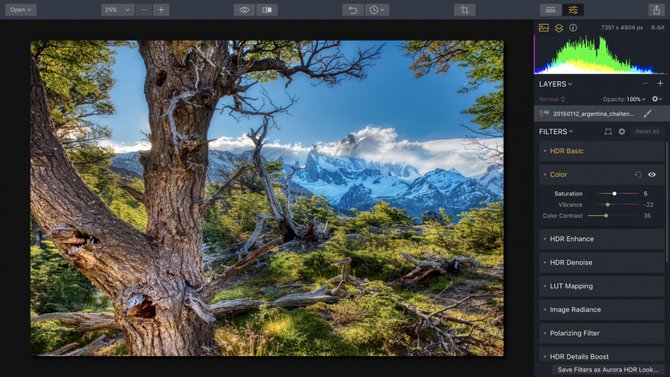

The Color section gives you complete control over colors and color saturation of the image. There are three useful controls that each affect the colors of your image in a different way, Be sure to experiment with each.
- Saturation — Adjust the color saturation of the image. This is a standard slider, similar to many other applications. Moving the slider to the right will cause the colors in the image to become more saturated, while moving the slider to the left will cause the picture to become black and white.
- Vibrance — This slider is a "Smart Saturation” control. In general, its effect is similar to Saturation with the difference that it increases less vibrant colors stronger and has a weaker effect on more vibrant colors. This allows you to obtain more realistic and less saturated colors in your picture. This slider can be used in conjunction with the Saturation slider to enhance secondary colors.
- Color Contrast — Enhances the color contrast in the image. Color contrast specifically refers to contrast that is created between differences based on colors (vs. luminance). The more you use the slider, the more contrast between primary and secondary colors.
Vibrance can be used in conjunction with Saturation to make secondary colors pop a little more. Application of Color Contrast is also recommended to obtain realistic contrast and color saturation of the picture. This slider is very helpful, especially if the color temperature is incorrect — make any corrections here at the very start of editing, before further image adjustment is applied.

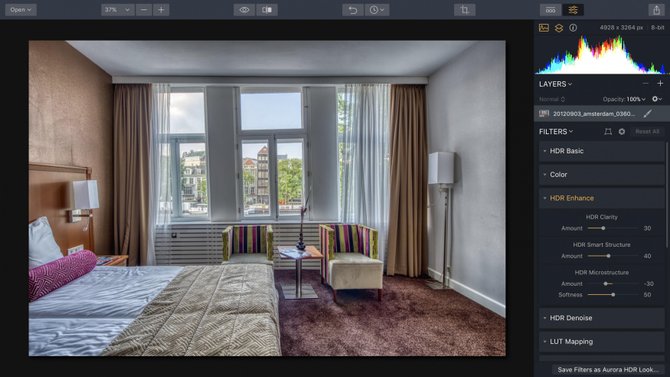

This tool allows adjustment of image detail and clarity. Using this tool you can get a classic HDR effect with great detail or get a smoother picture with less detail. This is the main tool to increase micro-contrast of the image and visualize more details.
HDR Clarity Section
The HDR Clarity slider is a single slider that adjusts a variety of controls including lighting effects and detail. It offers a special ability to configure balanced image brightness without getting completely white or completely black areas. This has the effect of making the image less realistic and more classically the look a lot of people associate with HDR.
HDR Smart Structure Section
Increases image detail by revealing the structure and texture of the surfaces in the image. This enhances the image and hidden details appear. This slider adjusts the overall display of details. Moving the slider to the right will accentuate details and make the image more unrealistic.
HDR Microstructure Section
This section amplifies micro-detail within the image. These are small details that form the surface of any object in the image. They can further enhance details of the image and provide a more vivid artistic HDR effect, however it can also make the image very noisy.
- Amount — Increases micro-details and contrast
- Softness — Affects the general "softness" and realism of the photo. Moving the slider to the left will cause the image to become very finely detailed and unrealistic.

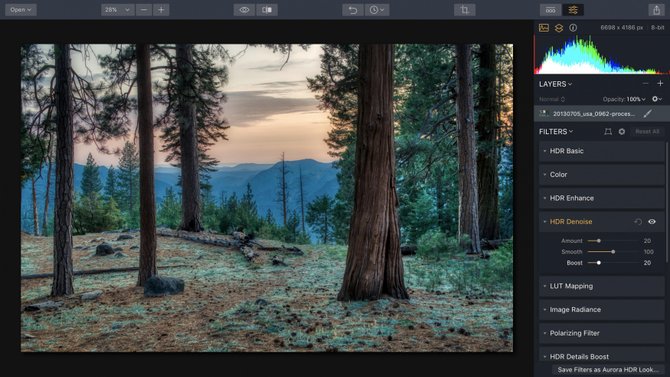

This tool slightly blurs the image and,reduces the amount of noise and any image artifacts caused by merging multiple exposures together. However, special algorithms also attempt to preserve edge detail if possible. It can also be used to reduce the amount of noise which may have been caused by increasing detail within the HDR Structure section.
- Amount — The strength of reduction of small noise in the image Moving the slider to the right will increase noise reduction. Note: the Amount slider must be moved above 0 to notice results.
- Smooth — This slider allows you to make the image more blurred which has the effect of creating a less detailed or noisy image.
- Boost — Adjusts the overall display of noise When the slider is moved to the right, allows the full effect of the de-noise control to be shown.
It’s helpful to apply this tool not to the entire image, but locally: Create a layer in which you’ll apply the effect. Then using a mask, brush only the area where the effect should be applied. For example, if the noise is very noticeable in the sky, use a mask to apply the effect to the sky. This effect should never be applied to the entire image — otherwise too much detail will be lost.

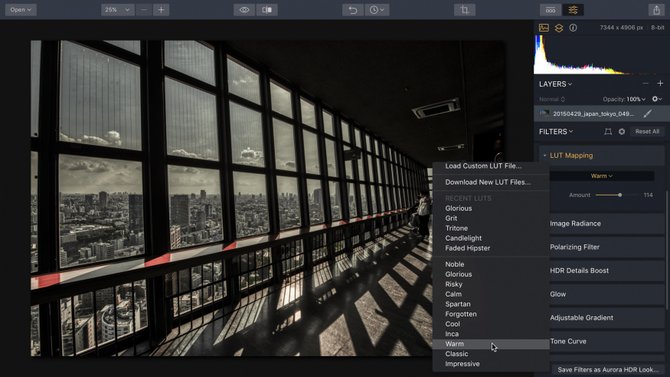

Use professional lookup tables to change the appearance of your photo quickly. Choose from film stocks, black and white looks, and create color grades to unlock a new style in seconds. You’ll find several built-in styles in the pop-up list, you can also load your own lookup tables in .cube,
.3dl, or .look format.
- Amount — This lets you reduce or increase the intensity of the Lookup Table.
If you choose a custom LUT it will automatically be stored with your saved Aurora HDR file or embedded into any custom Look that you create.

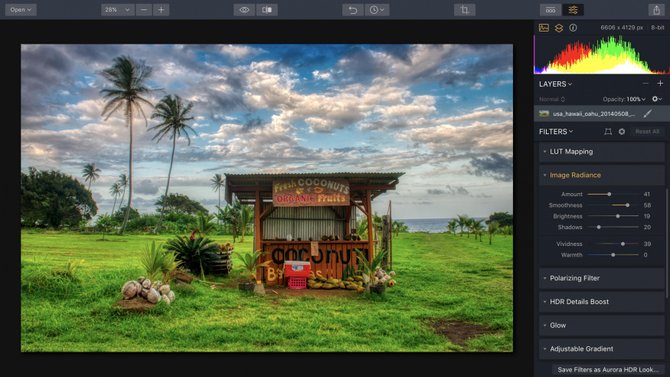

This tool provides a soft glow effect to the image, adding more vibrant colors with an increased global contrast. Moderate use of Image Radiance can give you more interesting, entertaining or “dreamy” images.
- Amount — Effect strength For a moderate effect and a more realistic image, keep the values in the Amount to +40. If the Amount value is 0, then the effect is not applied. Move the slider to the right to increase the Amount.
- Smoothness — Controls the softness of the effect
- Brightness — Controls the brightness of the effect
- Shadows — Controls how the affect modifies darker areas of the image A higher value will brighten dark areas.
- Vividness — A useful way to adjust the color saturation of the effect applied to the image
- Warmth — Adjusts the hue of the effect towards the warm end of the scale
At a low setting, this effect will give the image more contrast and can increase color in the image. Use the Vividness slider for better control.
On a camera, a polarizing filter can provide more color depth and cuts atmospheric haze, resulting in richer, bluer skies. The same holds true for the Polarizing Filter in Aurora HDR 2019. The effect will produce deeper blue skies and more contrast in clouds. With a light touch of this filter, almost any landscape image can be improved.
- Amount — Effect strength. If the Amount value is 0, then the effect is not applied. Move the slider to the right to increase Amount.
It is not recommended to use this tool on night photos or images without sky in them. Most often, keeping the effect intensity under +50 will yield the best results.

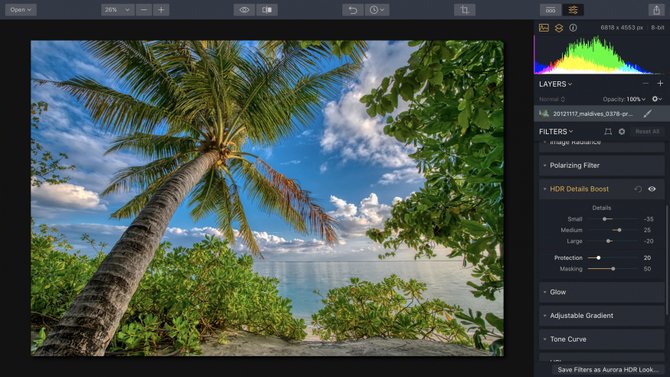

HDR Details Boost
This filter allows you to control the details of the image, making it more clear and sharp, or vice versa, softer. This tool is useful for improving the overall quality of the image as well as increasing the quality of the images used in high resolution, such as for printing. Increasing the sharpness can also compensate for any lower quality optics used to make the captured image.
Innovative technologies allow the HDR Details Boost adjustment to improve image sharpness without increasing digital noise or creating unnatural ghosting or halos in the image. This is a very powerful tool to improve the quality of images.
- Small — This sets the sharpness of fine details. At 0, the effect is not applied. Moving the slider to the right will intensify the clarity of small details, while moving it to the left, will wash out the fine details.
- Medium — This sets medium-sized parts sharpness. At 0, the effect is not applied. Moving the slider to the right increases the sharpness, while moving the slider to the left - decreases it.
- Large — This sets the sharpness of global contours of the objects in the image. At 0, the effect is not applied. Moving the slider to the right increases the sharpness, while moving it to the left — decreases sharpness
- Protection — This slider will protect fine details from being negatively adjusted.
- Masking — is a separate slider. This slider controls the zone of detail amplification. When moving the slider to the left, the number of zones increases and the image becomes more detailed. When moving it to the right, the number of granularity zones is reduced. Optimal masking comes from a setting in the range between 30 and 70.
A moderate increase in Small and Medium has positive impact on the sharpness and quality of any image. There is often no need to demonstrate all details in the image.
In bright areas, such as the sky and light clouds, unnecessary detail will reduce realism. The dark areas often need more detail. Therefore, it is always better to strengthen details in the shadows vs. lights.
Should you desire an image that is soft, you can achieve that effect by moving the Detail sliders to the left. By default all sliders are at 0 and at that setting have no effect. The effect is only visible after moving sliders to the left or right.

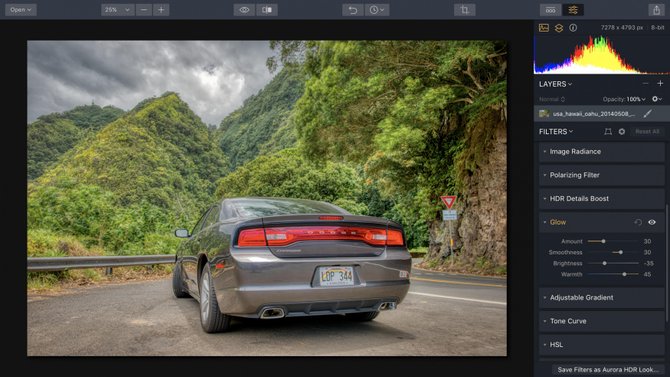

The Glow tool adds auras to the picture. The effect finds the brightest areas of an image and adds bright halos to it, adding the effect of shine. This effect can be used to give the photo a "romantic" look or create a fog effect. This effect works on night photos to accentuate glowing halos around light sources such as street or building lights.
- Amount — Sliding this control to the right increases the strength of the glow around areas of high brightness.
- Smoothness — This slider controls the size of halos around bright areas. Moving the slider to the right increases the size of the halos.
- Brightness — This slider analyzes the image and determines where halos will be created, letting you choose the areas of brightness that should be lightened up. Moving the slider to the left ensures areas of maximum brightness will be selected. This locates the glow just around the brightest areas. Moving the slider to the right will include darker areas to apply glow. Moving it all the way to a value of 100 will light up the entire image.
- Warmth — By default, a neutral white color is used for the glow in the middle of a halo. This slider allows you to select a specific hue for the glow using the cool-to-warm spectrum shown on the slider.
This effect can be a powerful tool for creative photo processing. When you move the Brightness slider to 100 and increase Amount, you get a misty or foggy effect in the picture. By increasing the Amount, detail in bright areas is not lost, but rather highlighted.

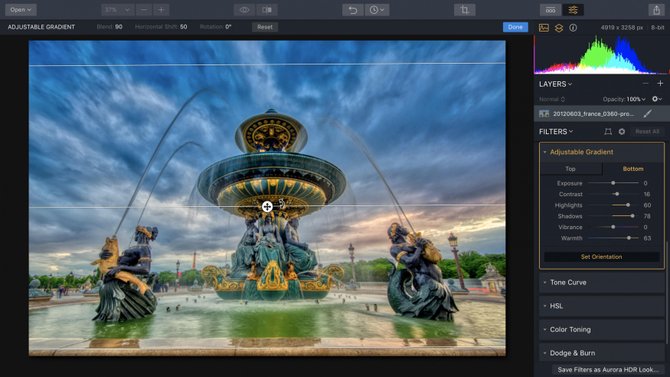

This tool is a simulation of an analog filter which can specify different levels of brightness in the picture vertically - the Graduated Neutral Density Filter. This effect is widely used in landscape or architectural photography using a distinct horizon. The effect flexibly and separately controls brightness and other aspects at the top and bottom of the image.
This enables you, for example, to lower the brightness of the sky and raise the brightness of the foreground. Thus, your image can be significantly improved without resorting to creating layers and masking.
Note: The explanation of the controls are the same for Top & Bottom sections of this panel.
- Set Orientation — On a Mac, click this button to interactively drag the position of the filter.
- Drag the Move arrows to position the Transition Zone.
- Place your cursor next to the Move tool and it changes to allow for Rotation of the Transition Zone.
- Expand or contract the Blend handles to adjust the rate of transition from top to bottom. Expand the bars to increase the Blend value, making the transition between the values of Top to Bottom wider. Decrease the spread to decrease the blend value creating a sharp transition between Top and Bottom.
- On Windows, use sliders to control the orientation of the Gradient.
- Exposure — This controls the brightness of the image. Moving the slider to the left will make it darker and to the right brighter.
- Contrast — This adjusts the contrast of the image. Contrast is the difference in luminance or color that makes objects in an image distinguishable from another.
- Highlights — This refines the brighter regions of an image with a targeted adjustment to lighten or darken with gentle blending.
- Shadows — This slider targets the darker areas of an image with a targeted adjustment to lighten or darken with a smooth transition.
- Vibrance — This slider makes less vibrant colors stronger and has a weaker effect on more vibrant colors. This allows you to achieve more realistic and avoid oversaturated colors in the image.
- Warmth — This adjusts the hue of the effect towards the warm end of the scale.
This tool is best suited for landscape shooting with a strong horizon line. With it, you can lower the brightness of the sky at the top, and then, using the Set Orientation button or sliders to position the strip of brightness transition between heaven and earth approximately at the level of the horizon.

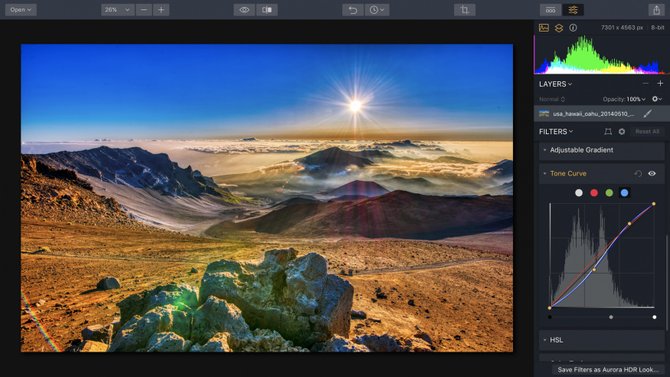

One of the most powerful tools for adjusting tones to brighten, darken, add contrast and shift colors. Curves can usually be applied to all channels together in an image, or to each channel individually. Curves can help you manually fine-tune the brightness and contrast of the image.
Users will either use Curves a lot or they won’t use it at all. The Curves interface is a bit complex and allows for up to 10 control points. This can significantly open up more options when adjusting color and exposure. The primary advantage of Curves is that you have precise control over which points get mapped for tonal adjustment.
- Tabs — You can make a curve adjustment to all channels equally or to an individual channel,(such as to blue, to emphasize the sky). Just click on the White dot for a global adjustment or use the Red, Green, and Blue dot to adjust the corresponding channel.
- Sliders — At the bottom there are sliders that let you adjust the black and white points of the histogram, (the leftmost and rightmost sliders), as well as the middle bend of the curve (the central slider).
- Points — You can add up to 10 control points. Drag up, to add contrast to an area and down to lighten the area. Multiple points can be employed for contrast adjustments based on tonal range.
Many, many articles are available on the Internet for information on using this tool. Generally moving a slider down will darken that channel and moving it up will lighten the channel. Experiment and have fun!

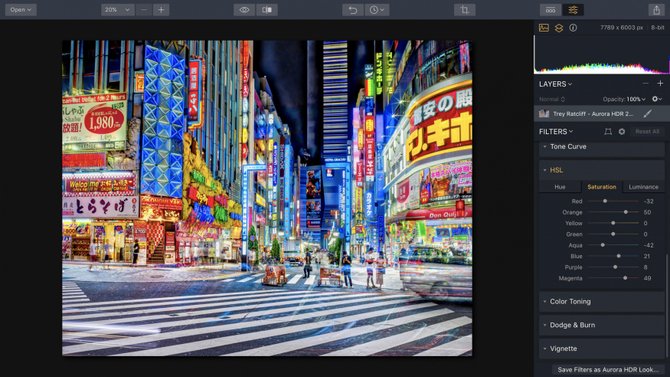

HSL (Hue, Saturation, Luminance)
This tool allows for separate adjustment of the hue, saturation and brightness of the main colors in the image. There are three tabs present in the Color Filter panel. Each tab contains sliders for Red, Orange, Yellow, Green, Aqua, Blue, Purple, and Magenta values.
- Hue — A set of sliders to adjust the hue or basic color shades of your image Sliding the control further to the right results in a more intense hue.
- Saturation — A set of sliders to adjust color saturation Sliding the control further to the right results in a more intense color. Of course, moving to the left removes color to the point where -100 will make the image appear black and white.
- Luminance — A set of sliders to adjust the brightness of the colors. Sliding the control further to the right results in a brighter color within the image. The further to the left, the darker the image.
This is a powerful tool for fine-tuning colors in the image as well as a means for creative image processing. It is found in several other popular photo apps such as Adobe Lightroom.
Examples of using this tool:
- When the sky is mostly blue in the photo. Lowering the brightness of blue colors in the image can darken and deepen the blue of the sky.
- Reducing the tone for some colors (move the slider to the right in Saturation tab), and leaving it for the other can create a dramatic effect on the selective color in photos.
- Raising the yellow color (move the slider to the right) can significantly improve the color saturation of autumn foliage in images.

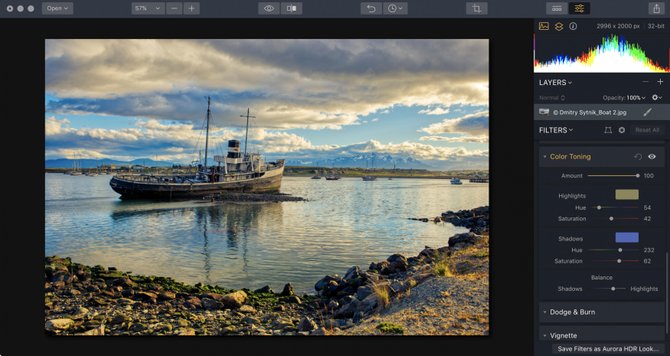

This tool affects the color toning of images. The color shade in the Highlights area is for the light areas in the image and the Shadows area color shade is for the dark areas. The effect can significantly increase the visual appeal of images, and is often used for creative artwork or to simulate analog photography techniques (e.g., a vintage look).
- Amount — Controls the overall intensity of the filter
Highlights set the color for the bright colors in the image.
- Hue — Move the slider to target the corresponding hue that you want to modify.
- Saturation — This slider lets you choose the saturation level of the Highlights color shade. If the value of saturation = 0, white is used and toning is not noticeable. Therefore, to use color, you must choose both Hue and Saturation.
Shadows sets the color for the dark tones in the image.
- Hue — Move the slider to target the corresponding hue that you want to modify.
- Saturation — This slider lets you choose the saturation level of the Shadows color shade. If the value of saturation = 0, white is used and toning is not noticeable. Therefore, to use color, you must choose both Tint and Saturation.
- Balance — Sets the balance between light and dark tones. If you move the slider to the right, more tones are considered bright and therefore the color chosen for the bright areas (Highlights) are emphasized in the photo. Move to the left and more tones are considered dark and the color chosen for dark tones (Shadows) are emphasized in the photo. Thus it is possible to balance what color is used to tone the image.
The best results are achieved if you use colors opposite to the bright and dark areas, for example: yellow and blue, green and purple.
Use warm tones for light colors and cool ones for the shadows. Only light or only dark areas of the image can be toned. To avoid toning of certain areas, simply set Shadows or Highlights saturation parameter to 0. The color is not applied.

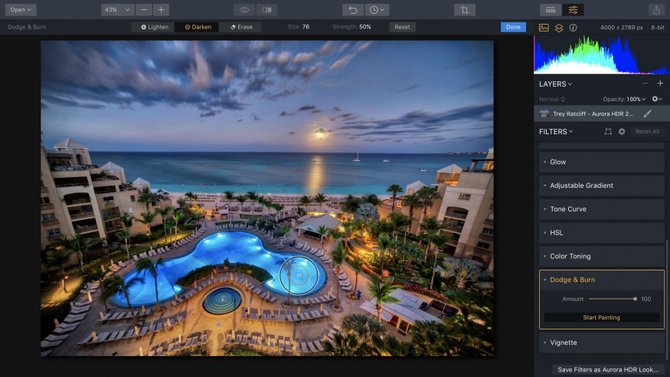

Dodge & Burn
Dodge & Burn tools are known as toning tools. They allow for finer control over lightening or darkening an image. These tools simulate traditional techniques used by photographers. In the darkroom, the photographer would modulate the amount of light on a particular area of a print.
- Click Dodge and Burn, to expand the Dodge & Burn section in the Filters list.
- Click the Start Painting button to open up your canvas.
- Choose either the Lighten or Darken tools in the top toolbar to select the desired brush.
- Use the Size slider in the Toolbar to control how large the brush is.
- Use the Strength slider to control its impact.
- If you get an accidental stroke, the Erase tool can be used to remove it.
- Click Reset if you need to start over.
- Click Done to apply the adjustment.
- Use the Amount slider in the filter control group to further refine the global intensity of the filter and blend it back into the original image.
The image on the left is the tone mapped file before applying the Dodge & Burn effect. Using the brush tools, areas like the pool and sky were selectively darkened (Burn) while other areas like the foreground were lightened (Dodge).
This tool is meant to be used creatively and by feeling. It is more about the look and result than ispecific numbers and slider settings. Feel free to experiment as you can always adjust the mask of the Dodge & Burn effect as well as its overall opacity.
Double-clicking on any slider name resets the value to the default. In most cases, double-clicking returns it to 0.
If you press and hold the Option key and click on a slider value in the sidebar, moving the cursor to the left and right will allow you to set the values of the slider with higher accuracy. Slider sensitivity becomes higher than with normal movement. This allows you to fine-tune by smaller numeric values.

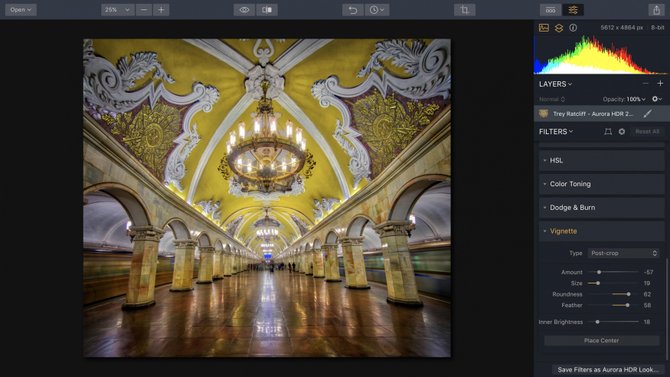

A Vignette darkens or lightens the edges of your image. This is quite an old technique to emphasize the accents on photos. The effect typically leaves the central area unaffected while the edges are shaded or lightened. Aurora HDR goes further by letting you place the center point of the vignette anywhere in the image you like.
- Type You can choose to calculate if the vignette should respect cropping of the photo or use its original borders.
- Amount Strengthens the darkening around the edges of photos In position 0, the effect is not applied. Move the slider to the left side of the picture to give more shading to the edges, or move the slider to right to brighten the edges.
- Size Determines the size of the obscured area Moving the slider to the left will increase the area of darkening. Moving the slider to the right will reduce the area of darkening.
- Roundness This slider changes the shape of the shaded area.
- Feather This slider sets the smoothness of the transition between the areas of shading.
- Inner Brightness This slider increases the brightness in the central region which is not affected by shading. It allows you to create a contrast effect.
- Place Center Button This control adjusts the center of the effect. By default, the center of shadowing effect is in the center of the image.
With this button you can shift the focus from the center of the image to any other place.
Click the button Place center to turn the cursor into a “target sight.” Then click anywhere in the image to set the new center of your shading effect.
This control is not yet available on Windows.
This tool allows you to highlight key points in the photo, making it more interesting. Slight edge shading always encourages the viewer's eye to consider the lighter central part of the photo. You can also move the center to focus attention on objects that are not in the middle of the picture. For a realistic picture, don’t lower the Amount below -50. As a rule, use this effect only with darker shading. Highlights are rarely used except for some vintage looks.
The image on the left has no vignette applied. The image on the right uses an off-center vignette to draw attention to the hanging chandelier.
