Filters are how you can adjust the exposure, color, contrast, and style of your image in
Luminar. The proper use of filters can significantly improve your image. Each filter
is designed to solve specific problems or enhance an image in a particular way. Be sure to click
the Info (i button) in the Filters Catalog to see helpful descriptions.
Applying a Filter
In order to adjust an image in Luminar, you’ll need to apply a filter. There are several
ways to do this for an image. You can choose the workflow that fits your personal
- Click the Add Filter Button. At the bottom of the Filters area is the Add Filter
button. You can also click the + button at the top of the Filters area. These both open a
pop-up list of filters. Use the Categories at the top to sort the list or the
Search box at the bottom to look for a specific effect. You can also over each
name to see a description and sample image for each filter.
- Add an Adjustment Layer. In the Layers area you can click the + button at the top
and choose to add an Adjustment Layer. Once added, the Effect list opens and you can

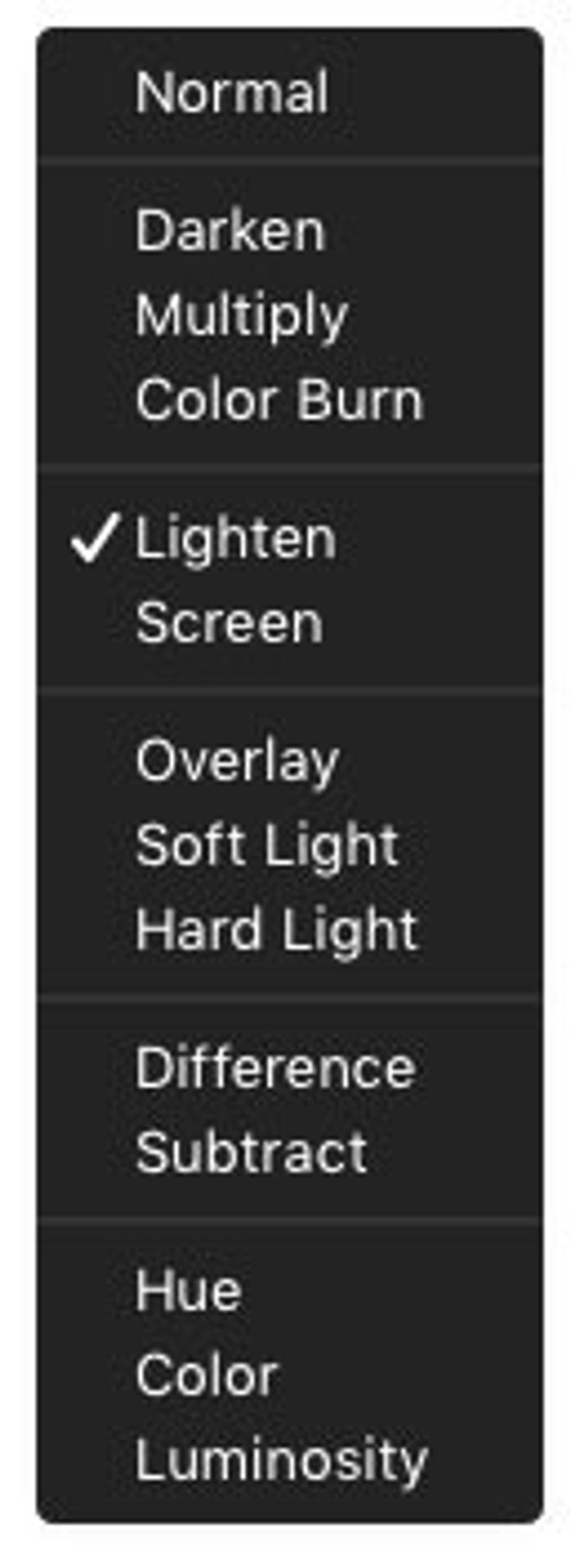

apply a filter to its own layer. This makes it easy to adjust the Blending Mode and
Opacity for the Adjustment Layer to refine the look of the filter. More on adjustment
layers in the chapter “Working with Layers.”
An Overview Of Filters
To help you get the most from Luminar’s filters, you’ll find a detailed guide that explains
the major features of each. Some filters have similar controls so you may notice that
certain Filters have parts that perform similarly. Filters are grouped into different
categories. based on function. All filters share some standard controls. At the top of each
filter you’ll find:

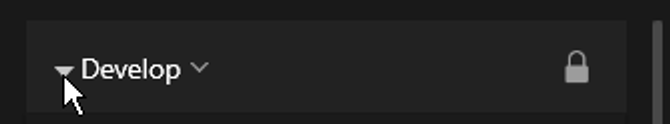

- Disclosure triangle. Click this triangle to hide or show a filter’s controls.

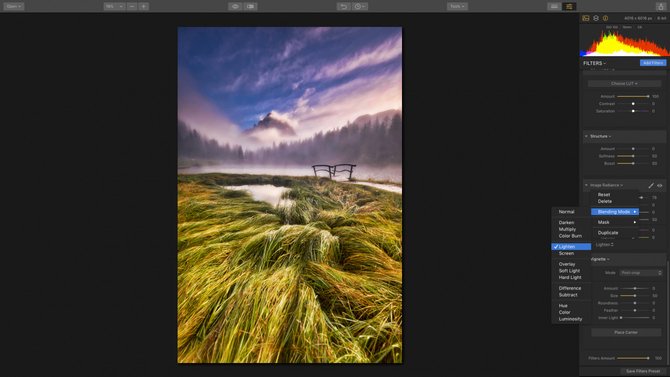

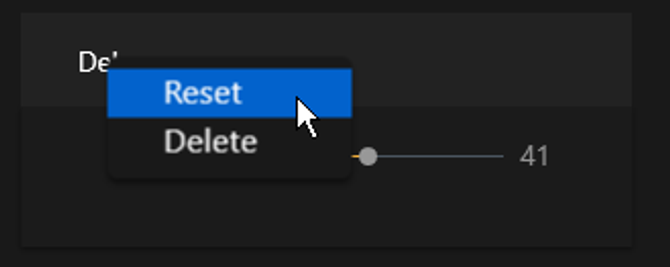

- Filter name. Click the filters name to access a contextual menu of filter

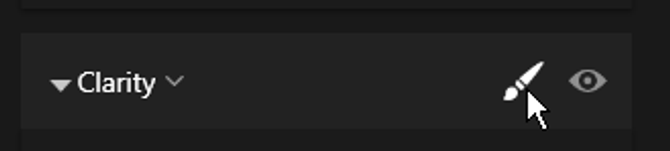

- Filter mask button. The filter mask lets you paint with a brush to control where a
filter’s results are shown or hidden.

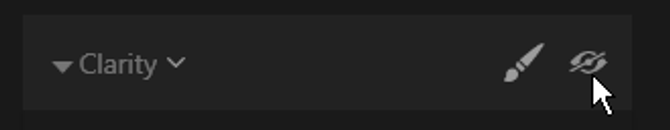

- Visibility icon. Click this icon to toggle the visibility for a filter’s
results. This is a useful way to judge the effect a filter is having on your
At the bottom of each filter you’ll find:

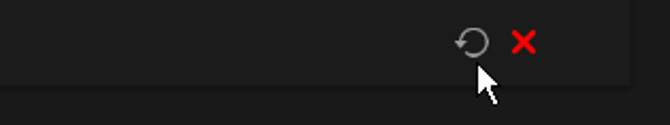

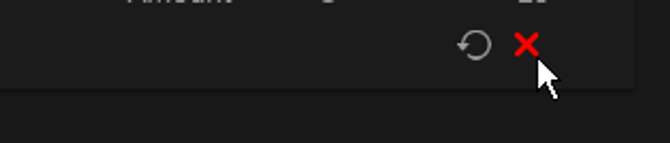

- Reset filter button. This resets all of the controls of a filter to their default
value. You can also double-click an individual slider to reset a single controller.
- Remove filter button. This removes the filter from the panel. You can re-add
a filter by clicking the Add Filters button at the top of the side panel. If you want to
temporarily disable a filter, just click its visibility icon (the eyeball).
The essential filter are some of the most frequently used in Luminar. These filters
perform core adjustments that are useful for most images.
Accent AI Filter
This filter automatically analyzes your image and instantly corrects it. Under the
hood, more than a dozen controls are in use. This effect tends to yield naturally
beautiful results with one simple slider. The Accent AI Filter can substitute for many
traditional controls like shadows, highlights, contrast, tone, saturation, exposure, details
Boost – Controls the overall amount of the filter effect applied to your

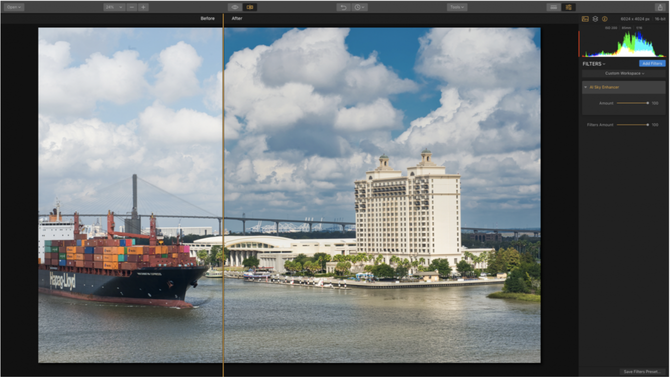

AI Sky Enhancer
The AI Sky Enhancer allows you to get beautiful skies almost instantly with artificial intelligence and a single slider. Luminar analyzes and detects the sky in an image to improve the texture, tone, and colors of the sky itself. The filter can recognize sky in most photos as well as distinguish between water and other elements in a photograph. It also detects the objects in the foreground and their edges for perfect masking.
As you move the slider, AI Sky Enhancer performs the necessary improvements, selectively adjusting brightness and contrast, saturation and vividness, alongside recovering the details and improving the textures of the sky and clouds. The AI Sky Enhancer is designed to work with most photographs of skies and works from blue hour in the morning to the blue hour in the evening. The filter is not designed to work with night skies.
Just like a professional photographer, AI Sky Enhancer treats different images differently. It applies a custom set of adjustments to a sky in a photo, depending on the look of that particular sky. This means that a blue sky will get a treatment far different from a grey sky, and a sunset sky will be enhanced differently from a mid-morning one.
- Amount – Controls the overall amount of the filter effect applied to your image.
If the controls are grayed out after applying the filter, the artificial intelligence could not recognize the sky in the photo. Skies that are very out of focus or blurred may not be detected automatically.
If you apply a preset look that uses the AI Sky Enhancer filter and no sky is detected, Luminar will skip the adjustment. This allows you to create your own custom preset looks containing the AI Sky Enhancer filter and still apply them to images whether they include any sky or not.
Black & White Conversion
The B&W Conversion filter converts a color photo to black & white. It also
contains a number of controls to manipulate the monochrome look.
- Color Filter. Six Color Filters are available which act similar to glass filters
that are placed in front of a camera lens. Neutral, red, orange, yellow, green and blue. Each
Color Filter when applied will brighten that specific color and darken the opposite color on
the color spectrum. For example: Red is often used to brighten skin tones and Blue to darken
skies. Click the Edit button to redefine any default value.
- Luminance. Color sliders control the brightness of each relative color as it is
converted from color to black and white.
- Saturation. Each Color slider will introduce the respective color that was present
within the original color image back into the black and white image.
- Exposure. Controls the overall luminance value throughout the image. Adding
exposure brightens the image while removing exposure darkens the image.
- Contrast. Controls the differences in the relationships of tonal values. Adding
contrast increases the difference between the highlights, midtones, and shadows. Removing
contrast decreases the difference between these tonal values, “flattening” these
- Highlights. Luminance control of the brighter values in the image, basically
affecting the tones on the right side of the histogram independently from the darker
- Shadows. Luminance control of the darker values in the image, basically affects
the tones on the left side of the histogram independently from the brighter values.
- Whites. Very specific luminance control over the brightest values within the
image, really only affecting the tones that lie within the far right of the histogram.
- Blacks. Very specific luminance control over the darkest values within the image,
really only affecting the tones that lie within the far left of the histogram.
- Clarity. Allows users to increase the contrast in the midtones introducing more
depth between the relationships of values that lie in the middle of the histogram.
- Details. Increases image details globally or in highlights and shadows.

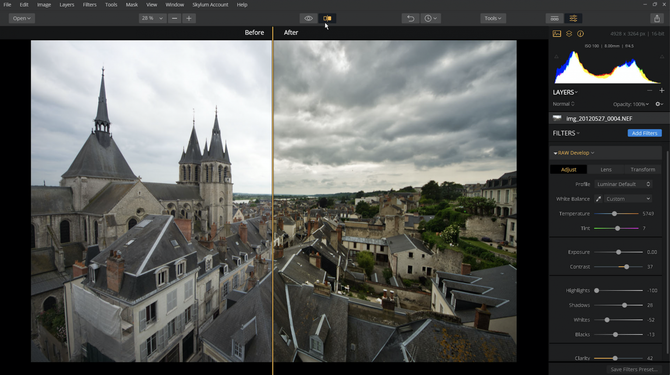

Develop & Raw Develop
The Develop and Raw Develop filter let you adjust the primary image. This filter is
usually run first. To learn more about it, see the section titled "How to Develop a RAW
This filter is a useful way to control the Intensity of colors in a photo. It is often
used in conjunction with Exposure or Tone adjustments
- Saturation. This slider adjusts the intensity of all colors in your
- Vibrance. This slider adjusts only the intensity of muted colors, ignoring
well-saturated colors. This is useful for finer control when adjusting color.
This tool allows adjusting of image detail and clarity. Using this tool you can get a
classic HDR effect with great detail or get a smoother picture with less detail. This is the
main tool to increase contrast of the image and visualize more details in the image.
- Amount. The strength of the effect. By moving the slider to the right, the
amount of visible detail in the image increases. Moving the slider to the left will cause
the image to lose detail and flatten. The “zero state” in the middle means that the amount
is not applied by default.
- Softness. Controls the overall softness of structure and textures in the image.
Moving the slider to the left will cause parts of the image to become less smooth and more
unrealistic. This produces the so-called classic view of the HDR effect. Moving the slider
to the right, on the contrary, the details become more global and the image is more
realistic. This is very useful slider to adjust realistic details.
- Boost. Adjusts the overall display of details. When moving the slider to the
left, the images will become more realistic and “calm." Moving the slider to the right will
accentuate details and make the image more unrealistic.
The Tone effect is a precise way to adjust overall brightness and contrast. It helps to
provide tonal balance and a unique signature style to your photos. Tone is one of the most
important filters to give your photos the necessary look. This filter is similar
to the Develop filter. However you may have only one instance of the Develop
filter in a recipe, you can have multiple instances of Tone.
- Exposure. Adjusts the global luminance of the image. Moving this slider to the
left results in a darker image (reduction of exposure value). Moving this slider to the right
results in a brighter image (increase of exposure value).
- Contrast. Adjusts the contrast of the image. Contrast is the difference in
luminance or color that makes an object in an image distinguishable from another. Practically
speaking, contrast is determined by the difference in the color and brightness of an object
in relation to other objects within the same field of view.
- Smart Tone. This slider adjusts the overall brightness of image properly. When
moving to the right, the image is more vivid, but it does not work when bright areas become
white, as in the ordinary exposure. And when you move the slider to the left, the image
becomes darker but there are no completely black areas. This is a very powerful and balanced
image brightness tool.
- Highlights. Adjusts the brightness of the brightest areas of the image. Moving the
slider to the right cause very bright areas to become brighter, while moving the slider to
the left, makes them darker.
- Shadows. Adjusts the brightness level of the darkest areas of the image. Moving
the slider to the right will cause such areas to become brighter and additional details will
appear. When moving to the left, such areas become darker, and the number of shadow areas in
the image generally increases.
- Whites. Adjusts the white point of the histogram and white tones in the image.
When moving to the right, the brightest tones will become brighter while the histogram
stretches to the right. Moving the slider to the left will cause white tones in the image to
become darker and the histogram to compress to the left.
- Blacks. Sets the black point of the histogram or black tones in the image. Moving
the slider to the right, black tones become brighter and the histogram compresses to the
right. Moving the slider to the left, black become darker and the histogram stretches to the
A recommended workflow is to start with a light touch with Exposure and Contrast, then Smart
Tone. Then proceed to setting Shadows and Highlights and finally fine tune the contrast of
the image using the Whites and Blacks sliders.
Whites and Blacks can be used to fine-tune of contrast of the image.
Strong raised Shadows can lead to a strong dark areas and loss of contrast.
A Vignette darkens or lightens the edges of your image. This is quite an old technique to
emphasize the accents on photos. The effect typically leaves the central area unaffected
while the edges are shaded or lightened.
- Amount. Strengthens the darkening around the edges of photos. In position 0, the
effect is not applied. Move the slider to the left side of the picture to give more shading
to the edges, while moving the slider to right will brighten the edges.
- Size. Size of the obscured area. Moving the slider to the left will increase the
area of darkening. Moving the slider to the right will reduce the area of darkening.
- Roundness. This slider changes the shape of the shaded area.
- Feather. This slider sets the smoothness of the transition between the area of
- Inner Brightness. This slider increases the brightness in the central region which
is not affected by shading. It allows you to create a contrast effect.
This tool allows you to highlight key points in the photo, making it more interesting. A
slight edges shading always provokes the viewer's eye to consider the lighter central part of
the photo. For a realistic picture, don’t lower the Amount below -50. As a rule, this effect is
used only with darker shading. Highlights are rarely used except for some vintage
Issue Fixers Filters
This set of filters is designed to solve image problems. They are useful to enhance
detail, sharpen an image or remove glare and unwanted color. These filters can be
useful to compensate for camera issues or challenges in the shooting environment.
Adjusts the overall image clarity. By increasing the value of the slider, the number of
visible details increases. If values are much larger, halos may appear on the contrast edges
of the image. A best practice is to be careful when raising the value of the slider above 50.
- Amount. Controls the amount of clarity added to the image.
This filter provides a proprietary blend of contrast, clarity and color adjustments to help
eliminate the effects of fog and haze often found in cityscapes, landscapes and aerial
photos. It's especially helpful when editing photos shot through glass or if there is a lot
of mist or fog in the scene.
- Amount. Move this slider to the right to help cut though fog and haze.
Upon close inspection, you may notice unwanted and distracting noise or grain in your digital
image. Often, This is typically caused by shooting photos with a high ISO setting on a
digital camera, but it can also be caused by underexposure or a long shutter speed. A
lower-quality consumer camera is also more likely to exhibit noise problems. Fortunately
Luminar offers an easy filter to reduce or remove noise.
- Luminosity. Removes grayscale noise from an image.
- Color. Removes color noise from an image.
- Boost. Increases how aggressive the Denoise filter is.
The Details Enhancer filter helps you create dramatic photos and brings crystal-clear
sharpness to your images. With the proper detail enhancement, you can make your photos look
great and sharp with no halos or extra artifacts.
- Small Details. Small sets sharpness of fine details. At 0, the effect is not
applied. Moving the slider to the right will intensify the clarity of small details, while
moving to the left, on the contrary, will somewhat wash out the fine details.
- Medium Details. This option sets medium-sized parts sharpness. At 0, the effect is
not applied. Moving the slider to the right increases the sharpness, while moving the slider
to the left decreases it.
- Large Details. Use this choice to set sharpness of global contours of
objects in the image. At 0, the effect is not applied. Moving the slider to the right
increases the sharpness, while moving to the left decreases it.
- Highlight Protection. To ensure that the brighter areas of the image aren’t
over-processed use the Highlight Protection slider.
- Masking. Try the Masking slider to control the zone of detail amplification. When
moving the slider to the left, the number of zones increases and the image becomes more
detailed. When moving to the right, the number of granularity zones is reduced. Optimal
masking comes from a setting in the range from 30 to 70.
Enhances the colors of foliage and greenery automatically, making them more vivid and
natural. A good choice for nature and lush landscape images.
- Hue. Modifies the hue of the affected foliage. Useful to dial in the right
amount of green.
- Amount. This controls how strong the adjustment is for the image.
On a camera, a polarizing filter can provide more color depth and cuts atmospheric haze,
resulting in richer, bluer skies. The same holds true with the Polarizing Filter in
Luminar. The effect will produce deeper blue skies and more contrast in clouds.
With a light touch of this filter, almost any landscape image can be improved.
It is not recommended to use this tool on night photos or images with no sky in them. Most
times, keeping the effect intensity under +50 will yield the best results.
Remove Color Cast
Automatically removes undesirable color casts in your images by detecting and adjusting the
hue. You can also make manual adjustments to fine tune the result.
- Method. There are three methods to choose from. Two are automatic that
attempt to determine color cast. The other lets you manually adjust the Hue.
- Amount. This slider is the amount of correction.
- Color. Adds color back to the image that cab be used to correct color
cast. If overdone, a new cast is added.
The Sharpening Filter helps focus soft edges in a photo to increase clarity or focus. Use
this tool to significantly improve image quality. Keep in mind that too much sharpening can
give your photo a grainy look. Please note: on most screens sharpening results can be seen at
100% or more Zoom.
- Amount. Effect of the micro sharpness applied to the image.
- Radius. Distance away from contrast edges that the effect is applied.
- Masking. The dynamic masking feature allows you to reveal details only in
appropriate areas and can help you define the sharpness in your image.
The Creative Filters are designed to unlock mood or emotion in an image. A wide range
of choices can be used as individual filters or in combination to create new looks.
Use the Brilliance/Warmth filter to a. dd rich color and warmth to any scene. The filter
offers very responsive controls which makes it easy to use. Positive values can be used to
warm the image. Plus you can use negative values to tone down an image as well.
- Vividness. Useful for creating rich color in a photo.
- Warmth. This controls the color temperature in the image. It can be used to
stylize an image or correct a color balance issue.
Reproduces a color cross-processing effect once commonly used in developing film to create
unnatural color and interesting contrast shifts.
- Type. Using the drop down list to choose a color palette preset inspired by
various international cities.
- Amount. Drag the amount slider to affect how strong the cross processing effect
The Dramatic filter is a creative filter that lowers saturation and increases contrast,
helping to achieve a gritty cinematic look in your photos, similar to the darkroom technique
“Bleach Bypass.” It is often used in stylized fashion shoots, urban images, or grungy athletic
- Amount. The Amount slider controls the total intensity of the added effect.
- Contrast. Controls the differences in the relationships of tonal values. Adding
contrast increases the difference between the highlights, midtones, and shadows.
- Local Contrast. Adds a more targeted contrast adjustment to the finer details of
- Brightness. Darkens or lightens details in the image. Often useful for
bringing out details in areas like skies.
- Saturation. Controls whether colors become washed out or more
Allows you to add a strong softening or blurring effect to part of your photo, simulating
the high humidity weather phenomenon commonly known as “Fog”. You can add Light Fog or Dark Fog
to an image and adjust its intensity with the Amount slider.
- Fog Type. Choose from two different style of fog.
- Amount. Controls the amount of fog added.
Use the Golden Hour filter to bring warmth, softness, and golden glow to all of your photos.
Simply dial in the amount of warm toning using the Amount slider and use the Saturation slider
to introduce an even more overall color vibrancy. Quickly emulate the magic that happens just
after sunrise or just before sunset.
- Amount. This controls the amount of warm toning.
- Saturation. This controls the overall saturation of the Golden Hour filter.
Emulates the structure of analog film stock by introducing a random, stylized grain into
your image. Keep in mind that grain and photo noise are different things. Use grain to give
your color and black & white photos a cool analog feel.
- Amount. This controls how present the grain is.
- Size. This adjusts the size of the grain being added.
- Roughness. This affects the visual appearance of the grain.
Emulates the look of a high key lighting set-up where the main light source slightly
overexposes the subject. This produces bright high contrast images. Often used in Fashion &
- Amount. How much of the effect is added to the image.
- Glow. Controls the behavior of the brighter areas of a photo.
- Standard High Key. Affects the image in a global fashion.
- Dynamic High Key. Is more limited in its effect, taking skin tones into account as
it applies the filter to the image.
- Saturation. Determines if the overall colors become washed-out or stay
- Black. Maintains contrast in the darkest areas.
- Contrast. Impacts the overall contrast in the image (the relative difference
between the lightest and darkest areas).
This filter lets you roll the hue in a photo for subtle or dramatic changes. A little
is perfect to eliminate unwanted color tints while a big adjustment is perfect for dramatic
- Hue. This slider controls the Hue of the overall image.
This filter provides for an overall “dreamy” look to your image by softening image
luminescence, and increasing contrast & saturation. It can create a dreamy, fantasy look for
photos by increasing contrast and adding a creative glow, prioritized to the lighter areas of the
- Amount. The overall effect strength. For a moderate effect and a more realistic
image, keep the values in the Amount to +40. If the Amount value is 0, then the effect is not
applied. Move the slider to the right to increase Amount.
- Smoothness. This controls the softness of the effect.
- Brightness. Use this slider to control the brightness of the effect.
- Shadows. Adjusts the black point for the darker areas of the image.
- Saturation. A useful way to adjust the color saturation of the effect applied to
- Warmth. Adjusts the hue of the effect towards the warm end of the scale.
At a low setting, this effect will give the image more contrast and can increase color in
the image. Use the Smart Colorize slider for better control.
This filter can give your photos an aged look with flat color and high contrast. This
works well for both landscape and portraits to change the emotion of your image.
- Amount. The overall strength of the matte look effect.
- Fade. Controls the loss of detail that happens in the darker areas of the
- Contrast. This adjusts the relationship between the brighter and darker areas of
- Vividness. This control can be used to affect how richly saturated the effect
- Toning Range. Affects what portion of the image has its color
- Toning Hue. This sets the color that the image takes on.
- Toning Saturation. This controls how strong the toning effect is.
The Orton Effect allows enhancements to an image that includes glow and focus which produces
photos that are sharp and blurry at the same time. This is a great way to add a unique look to
- Type: They Type pop-up menu offers two choices. Type 1 increases the
Saturation of the image while Type 2 is a softer glow.
- Amount. Controls the overall strength of the effect.
- Softness. Choose whether you want the effect to blend gently or have more
- Brightness. This control can raise the luminance values of the entire
- Contrast. Use this to maintain a crisper difference between the light and dark
areas of the photo. This is a useful way to create rich blacks and bright whites.
- Saturation. Controls the intensity of colors in the affected image.
This filter emulates a soft focus lens effect or diffusion material placed across your
lens. It is perfect for adding a creative glow to portrait and wedding photos.
- Type. Use the pop-up menu to choose from two styles of an effect.
- Amount. The Amount slider controls the intensity of the Soft Focus filter.
- Brightness. Use this slider to increase the relative exposure of the
This effect us useful for creating a lighting effect in photos. It is especially
useful for bright areas in your image such as streetlights or sky.
- Amount. The overall effect strength. If the Amount value is 0, then the effect is
not applied. Move the slider to the right to increase Amount.
- Smoothness. This controls the softness of the effect. A Higher value creates a
gentler blend between the affected and unaffected areas of the image.
- Brightness. Use this slider to control the brightness of the effect.
- Warmth. Adjusts the hue of the effect towards the warm end of the
A powerful creative tool, Split Toning offers the ability to introduce color toning to black
and white images. Toning a black and white image can transform the mood of the resulting image
and also help in some printing processes.
- Amount. The overall strength of color toning applied to an image.
- Highlights Hue. Scroll through a spectrum of colors to choose the toning of the
bright values in a scene.
- Highlights Saturation. This increase the intensity of the color in the light area
of the image. Protection - Preserves white in the brightest highlights in an image.
- Shadow Hue. Scroll through a spectrum of colors to choose the toning of the darker
- Shadow Saturation. Increase the intensity of the color in the dark areas of the
- Balance. Shifts the balance between what is considered and affected by the
Highlights adjustments and the Shadows adjustments of Split Toning. Slide to the left and the
adjustments made to the Shadows will take precedent, slide to the right, the adjustments made
to the Highlights will take precedent.
Add a whole new light source to your photo, the sun! You can control its position, the
warmth, and amount of glow for a subtle or even dramatic change in lighting. Combine the filter
with blending modes for even more control to your lighting.
- Place Sun Center. Click this button to interactively nudge the sun’s position by
- X. Moves the sun’s origin point along the X-axis.
- Y. Moves the sun’s origin point along the Y-axis.
- Sunrays Amount. Controls the overall intensity of the sun rays. Sunrays
Look. This changes the overall brightness of the scene;
- Sunrays Number. Use a higher number for more rays and a lower number for
- Sunrays Length. This impact the distance the sun rays will travel.
- Sunrays Warmth. Use this slider to adjust the color temperature of the
- Sun Radius. This affects the size of the sun rays origin point.
- Sun Glow Radius. This slider changes the size of the glow around the sun.
- Sun Warmth. Can change the sun from bright white to a warm glow.
- Overall Penetration. This slider impacts how much the sun passes through an
area. This can be useful when trying to natural composite the rays into a
- Overall Randomize. Use this slider to get entirely new results that are a
variation based on the current settings.
Enables custom images and textures to be blended as a layer into the current image.
Textures can easily give your photos new unique looks, especially when you’re trying to
achieve a vintage or grungy look.
Load Texture. Click the Select Texture button to open a file browser. You’ll be
able to choose a texture graphic on your hard drive.
Flip/Flop buttons. This swaps the direction if the texture image.
Amount. Use the Amount slider to control how the image lightens or darkens based
upon the texture layer.
Zoom. Controls the size of the texture.
For complete control over your image, professional filters allow fo precise
adjustments. This filters offer more control for fine adjustments in an image.
Precisely adjusts tonal contrast with six distinct controls spanning highlights, midtones
and shadows, making for more detailed results.
1. Use the Highlights, Midtones, and Shadows sliders to refine the
amount of contrast in each zone. Dragging to the right increases contrast.
2. Use the three Balance sliders to define the midpoint for each zone. This
allows you to refine which area is treated as a Shadow, Midtone, and
Digital images are comprised of Red, Green, and Blue information. These components
are called channels and if they are not balanced properly an image can show color
casts. By modifying channels you can choose to emphasize or deemphasize certain
details. The Channel Mixer filter allows fine-tuning adjustments and mixing of the
Red, Green and Blue color channels (RGB) to create highly customized images. Many
users will also use the effect in combination with their black & white conversions
- Red/Green/Blue. Use the tabs to switch between each color channel.
- Red. Influences the balance of Red details.
- Green. Influences the balance of Green details.
- Blue. Influences the balance of Blue details.
- Constant. Adds a global amount of influence to the entire channel.
If you press and hold the Option key and click on a slider value in the sidebar, moving
the cursor to the left and right will let you set the values of the slider with high accuracy.
Slider sensitivity is higher than with its normal movement. This allows you to fine-tune to
small numeric values.
The Color Balance filter is useful to change the overall mixture of colors in an image for
general color correction. It can also be used for creative control within different tonal
regions of an image.
- Tone. Choose the region to adjust. You can select Shadows, Midtones, and
- Color Balance Sliders. Adjust the balance of Cyan-Red, Magenta-Green, and
Yellow-Blue to emphasize certain colors in each tonal region.
This filter lets you choose a color range to which to apply contrast. The color selected
will cause objects of that color to become lighter, while opposite colors on color wheel will
become darker. This effect can help make flat images pop based on the colors in the image.
- Amount. This controls contrast that is created between differences based on colors
(vs. luminance). The strongest is the more contrast between primary and secondary
- Hue. Chooses the target Hue for emphasis.
- Brightness. The overall lightness or darkness of the image is controlled with this
- Contrast. This slider emphasizes the difference in brightness between areas and
Double click on any slider name resets the value to the default. In most cases,
double-clicking returns it to 0.
One of the most powerful tools for adjusting tones to brighten, darken, add contrast and
shift colors. Curves can usually be applied to all channels together in an image, or to
each channel individually. Curves can help you manually fine-tune the brightness and
contrast of the image.
Most users will either use Curves a lot or they won’t use it at all. The Curves interface
is a bit complex and allows for up to 10 control points. This can significantly open up
more options when adjusting color and exposure. The primary advantage of Curves is that you
have precise control over which points get mapped for tonal adjustment.
- Tabs. You can make a curve adjustment to all channels equally or to an individual
channel (such as to blue to emphasize the sky).
- Sliders. At the bottom there are sliders that let you adjust black and white
points of the histogram (the leftmost and rightmost sliders), as well as the middle bend of
the curve (the central slider).
- Points. You can add up to 10 control points. Drag up to add contrast to an
area and down to lighten the area. Multiple points can be employed for contrast adjustments
based on tonal range.
Dodge & Burn
Dodge & Burn tools are known as toning tools. They allow for finer control over
lightening or darkening an image. These tools simulate traditional techniques used by
photographers. In a darkroom, the photographer would regulate the amount of light on a
particular area of a print.
1. To Dodge and Burn, apply the Dodge & Burn filter in the Filters list.
2. Click the Start Painting button to open up your canvas.
3. Choose either the Lighten or Darken tools in the top Toolbar to select the
4. Use the Size slider in the Toolbar to control how large the brush is.
5. Use the Strength slider to control its impact.
6. If you get an accidental stroke, the Erase tool can be used to remove it.
7. Click Reset if you need to start over.
8. Click Done to apply the adjustment.
9. Use the Amount slider in the filter control group to further refine the global
intensity of the filter and blend it back with the original image.
This is a tool that is meant to be used creatively and by feeling. It is more about
the looks and results than it is specific numbers and sliders. Feel free to experiment as you
can always adjust the mask of the Dodge & Burn effect as well as its overall
Selectively adjusts Hue (color), Saturation (color purity), and Luminance (intensity) of
individual colors in the image for color correction to balance tones and explore creative
possibilities. Allows you to create unique looks with selective coloring.
There are 3 tabs present in the Color Filter panel.
- Hue. A set of sliders to adjust the hue or basic color shades of your image.
Sliding the control further to the right results in a shift towards the next color in the
list (for example from Orange to Yellow). Sliding the left shifts the hue towards the
previous color in the list (for example from Orange to Red).
- Saturation. A set of sliders to adjust color saturation. Sliding the control
further to the right results in a more intense color. Of course, moving to the left removes
color to the point where -100 will make the image appear black and white.
- Luminance. A set of sliders to adjust the brightness of the colors. Sliding the
control further to the right results in a brighter color within the image. The further to the
left, the darker the image.
This is a powerful tool for fine-tuning of colors in the image as well as a means for
creative image processing. Examples of using this tool:
The sky is mostly blue in photos. Therefore, lowering the brightness of blue colors in
the image can cause more dark and deep blue of the sky.
Reducing the tone for some colors (move the slider to the right in Saturation tab), and
leaving it for the other can cause a dramatic effect on the selective color in photos.
Raising the yellow color (move of the slider to the right) can significantly improve
color saturation of autumn foliage on the photos.
Use professional lookup tables to change the appearance of your photo quickly. Choose
from film stocks, black and white looks, and create color grades to unlock a new style in
seconds. You’ll find several built-in stylize in the pop-up list, you can also load your own
lookup tables in the .cube format.
- Amount. This lets you reduce the intensity of the Lookup Table.
- Contrast. This impacts the overall contrast in the image and can be used to refine
the LUT’s appearance.
- Saturation. This impacts the overall saturation in the image and can also be used
to refine the LUT’s appearance.
If you choose a custom LUT it will automatically be stored with your saved Luminar file or embedded into any custom preset that you create.
Improves the sharpening of your image in small areas of fine detail and texture. Advanced
parameters allow you to fine tune this subtle yet dramatic effect. Use this tool to get some
creative, HDR-like effects.
- Amount. Use the Amount slider to control how much structure is added.
- Smoothness. Try the Smoothness slider to better blend the increased details
and avoid hard edges.
This filter simulates color filters that traditionally are attached to a camera lens.
Professional photographers often place glass filters in front of the camera lens to “cool” or
“warm” a picture, or to add special effects. These can also be used to accentuate complementary
colors, and add creative toning to your photos.
- Amount. Controls how much of the colored filter is added to the image.
- Hue. Sets the color value for the photo filter.
- Saturation. Controls the intensity of the color added to the image.
- Save Luminosity. This option prevents the overall exposure of the image from
changing. It is useful for most cases and should be turned on to compare its
Split Color Warmth
This filter can be used to selectively enhances cool and warm tones in your image. Allows
you to get increased color contrast and vibrancy or create creative toning effects. You can
separately adjust the Warm Colors and Cool Colors. Drag to the left to reduce Saturation
in a target and to the right to add more in.
These filters are designed for making functional changes to an image. They are often
useful for adjusting the lighting in an image, or tone.
The Adjustable Gradient filter allows you to selectively adjust exposure, contrast,
vibrance and warmth for 2 different parts of the image. You can adjust the mask orientation
for selective adjustments. This effect is very well-suited for adjusting the sky and ground
regions in a photo.
- Exposure – Adjusts the luminance of the image. Moving a slider to the left
results in a darker image (reduction of exposure value). Moving this slider to the right
results in a brighter image (increase of exposure value). You can adjust the relative
exposure for both the top and bottom of the image independently to refine an image.
- Contrast – Separate contrast controls allow you to modify the amount of
contrast at the top and bottom of the image. Contrast is the difference in luminance or
color that makes an object in an image distinguishable from another. Practically speaking,
contrast is determined by the difference in the color and brightness of an object in relation
to other objects within the same field of view.
- Vibrance. This slider is a "Smart Saturation” control. In general, its effect is
similar to Saturation with the difference that it increases less vibrant colors stronger and
has a weaker effect on more vibrant colors. This allows you to get more realistic and less
saturated colors the picture. This slider can be used in conjunction with the Saturation to
enhance the secondary colors.
- Warmth. This slider affects how warm or cool an image appears. A positive
value adds warmth while a negative value cools the image.
- Orientation – You can adjust the orientation of the gradient with three
controls. It can be moved up or down as well as rotated. It can also be blended
for a smoother transition.
This filter simulates a traditional glass bi-color filter. It uses two colors and a
soft transition to tone the image. This is a good choice for enhancing seascapes and landscape
- Amount. This controls the intensity of the filter. Overall, how strong the
- Top Color. This is the color used at the top of the frame. This will usually
be a shad of blue or purple for the sky.
- Bottom Color. Use this color to control the landscape or water color.
- Blend. The blend control affects how smooth or a transition there is between the
top and bottom adjustment. A higher value creates a soft transition while a lower value
is more abrupt.
- Shift. The shift option moves the transition point between adjustments. By
default it is centered top-to-bottom, but this can be raised or lowered in the frame.
- Rotation. If your image is angled (or your scene has strong geometric composition)
you can rotate the angle of the blending. You’ll find controls to rotate + or -
This is a basic filter which adjusts the overall lightness or darkness of an image
(brightness) and the difference in brightness between areas and objects (contrast). This
filter is easy to understand and works well for new users. For best results consider using the
Tone or Develop filters.
This filter modifies the color temperature of the photo, making it cooler (more blue) or
warmer (more orange). It helps you fix incorrect color temperature on your photos.
White Balance. Use the White Balance preset list to choose from a variety of presets that are similar to a camera’s white balance menu.
Temperature. Use this slider to warm or cool a shot. This adjustment essentially adds Cyan or Yellow to an image to change its color temperature.
Tint. This adjusts the amount of Green or Magenta that is added to a shot. It is useful for removing color casts from an image.
A simple filter to adjust the overall Exposure of the image. This filter only offers one
slider. For more control consider using the Tone or Develop filters.
After adjusting the Exposure filter you may need to use a Saturation/Vibrance filter.
Increasing exposure will desaturate the image. Decreasing exposure will boost the
This filter works well with filter masks for precise adjustments to exposure.
Provides adjustment for highlight and shadow by changing the brightness of each region
independently. You’ll often need to combine this filter with a Saturation/Vibrance adjustment
to restore washed-out color in recovered areas.
- Highlights . Adjusts the brightness of the brightest areas of the image. Moving
the slider to the right cause very bright areas to become brighter, while moving the slider
to the left, makes them darker.
- Shadows. Adjusts the brightness level of the darkest areas of the image. Moving
the slider to the right will cause such areas to become brighter and additional details will
appear. When moving to the left, such areas become darker, and the number of shadow areas in
the image generally increases.
Top & Bottom Lighting
This filter allows selective adjustment of lighting for the top and bottom parts of the
image. Controls permit shifting the transition area, rotation angle and blending gradient. This
effect is widely used in landscape or architecture photography with a distinct horizon. The
effect flexibly and separately controls the brightness and other aspects of the top and bottom
of the image. This enables you, for example, to lower the brightness of the sky and raise
the brightness of the foreground. Thus, your image can be significantly improved without
resorting to creating layers and masking.
- Top. Controls the brightness of the top of the image. Moving the slider to the
left will make it darker and to the right brighter.
- Bottom. Controls the brightness of the bottom of the image. Moving the slider to
the left will make it darker and to the right brighter.
- Orientation. Three sliders let you adjust the horizontal position, rotation of the
adjustment, and feathering between top and bottom.
This filter is a simple way to adjust the white and black point of an image. This
gives you finer control over the contrast in a photo. Drag a slider to the right to
brighten a zone and to the left to darken.
- Whites. This affects the brightest areas of the image.
- Blacks. This affects the darkest areas of the image.
Using Blending Modes with Filters
The use of filters can be significantly extended with blending modes. Each filter supports the use of its own blending mode, which allows for very complex combinations of results. Blending modes are both a mystery and a source of great design power. Each blending mode controls how a filter’s results are blended with the image below.
Applying a Blending Mode to a Filter
To access Blending Modes for a filter
- Apply a filter to an image.
- Click the triangle next to a filter’s name.
- From the drop-down menu choose Blending Mode.
- Select a blending mode from the list.
Definition of Blending Modes
How do blending modes work? The simple answer is, it depends. Your response is likely, depends on what? Simply put, the effect achieved by blending a filter varies with the contents of the original layer and the filters applied. A blending mode compares the content of two and enacts changes based on the content of both.
Here are the modes supported by Luminar:
- Normal. The default mode performs no additional change to how layer contents interact.
- Darken. Pixels lighter than blend are replaced; darker ones are not.
- Multiply. Is similar to drawing strokes on the image with markers. The colors of the top layer or blended with the image.
- Color Burn. Evaluates each channel; darkens base by increasing contrast.
- Lighten. Evaluates each channel; it then uses base or blend color (whichever is lighter).
- Screen. Uses a lighter color. It is useful for “knocking” black out of a layer.
- Overlay. Overlays existing pixels while preserving highlights and shadows of base.
- Soft Light. The effect is similar to shining a diffused spotlight on the image.
- Hard Light. Effect is similar to shining a harsh spotlight on the image.
- Difference. Evaluates each channel and subtracts or inverts depending on brightness.
- Subtract. Looks at the color in each channel and subtracts the blend from the base.
- Hue. Uses luminance and saturation of the base and the hue of the blend.
- Color. Preserves gray levels. It’s very useful for coloring and tinting.
- Luminosity. Is the inverse effect from the Color mode.
To get the most from blending modes:
- Experiment Freely. The best way to use blending modes is to just try them out.
- Exploit Blending Modes. Do you need to tint an image? Place a Photo Filter on top of the image and change to Hue or Color mode. Need to drop out white in a layer? Just set it to Multiply mode. Blending modes are available for every filter.
Additional Filter Controls
If you’d like to take additional control over how filters behave, try these two advanced
- Double click a Slider. If you double-click on any slider name resets the value to
the default. In most cases, double-clicking returns it to 0.
- Hold the Option Key. If you press and hold the Option key and click on a slider
value in the sidebar, moving the cursor to the left and right will let you set the values of
the slider with high accuracy. Slider sensitivity is higher than with its normal movement.
This allows you to fine-tune to small numeric values.
- Masking. Click the mask button next to a filter’s name to control how a mask is
applied. See the section “Masking Options in Luminar” to learn more.
Download the full Luminar
2018 User Guide for Windows in PDF Format
